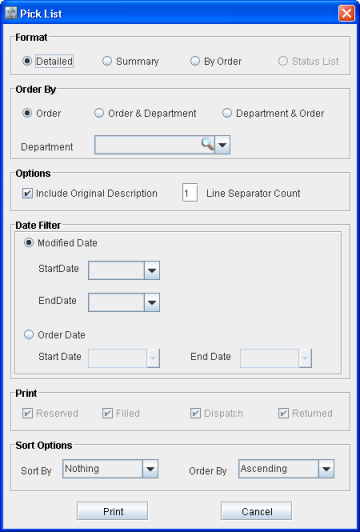

Pick List Print

Field Names

Functionality

Format

Detailed

If selected, prints each item ordered on a separate line. Items with multiple quantities will not be grouped together but will be printed in separate lines.

Summary

Prints total quantity of an ordered item on a single line.

By Order

Print items by order number, from lowest to highest.

Order By

Order

Selecting this option will sort the print by order ids.

Order & Department

Select this option to print  pick list of an order for a particular department. Use Department drop-down list to select a department.

Department & Order

Select this option to print  pick list of a department for a particular order. Use Department drop-down list to select a department.

Department

Import Button

Clicking on the importable button opens the Department Group window where one or more departments can be selected.

Drop-down list

Use the importable button first to add departments to the drop-down list. Use the drop-down list to select a department to print a pick list only for that department.

Options

Include Original Description

Select this to print the original description of the item (as present in the item edit window) in the print generated. If the option is not checked the system will print the current description.

Line Seperator Count

This can be used to insert blank lines between the lines that are displayed in the Pick List print.

For example, if the value is defined as 2, then two blank lines will be inserted after each line in the print generated.

Date Filter

Modified Date

Select this to print pick list for items within an order depending on the date and time they were modified. This filter is applicable for orders which were modified at least once after their pick list was printed.

• On generating  pick list with the modified start and end date selected, then the modified dates will get cleared and will not be shown for next time when Pick list print option dialog is invoked.

• When the Pick List is generated with blank dates, then the modified dates present prior to printing will be cleared.

Start Date

Select a date from the provided list of dates, on which the order was ever modified.

If specified alone, all items within the order that were modified after this date will get printed. If End Date is also specified then all the items within the order that were modified within the time range as specified by Start and End dates will get printed.

End Date

Select a date from the provided list of dates, on which the order was ever modified.

If specified alone, items within the order that were modified before this date will get printed. If Start Date is also specified then all the items within the order that were modified within the time range as specified by Start and End dates will get printed.

Order Date

Select this to print pick list of all the items within the order.

Start Date

This field should be populated with the order Start Date.

End Date

This field should be populated with the order End Date.

Print

Reserved

Select this to print only the reserved order lines.

Filled

Select this to print only the filled order lines.

Dispatch

Select this to print only the dispatched order lines.

Returned

Select this to print only the returned order lines.

Sort Options

Sort By

Select this to sort the pick list by either Product ID, Description, Department or Bin Number.

Order By

Select this to order the sorted list elements in either the ascending or descending order.

Print Button

Click on this button to print the Pick List.

Cancel

Click on this button to close the Pick List Print window without printing the Pick List.
